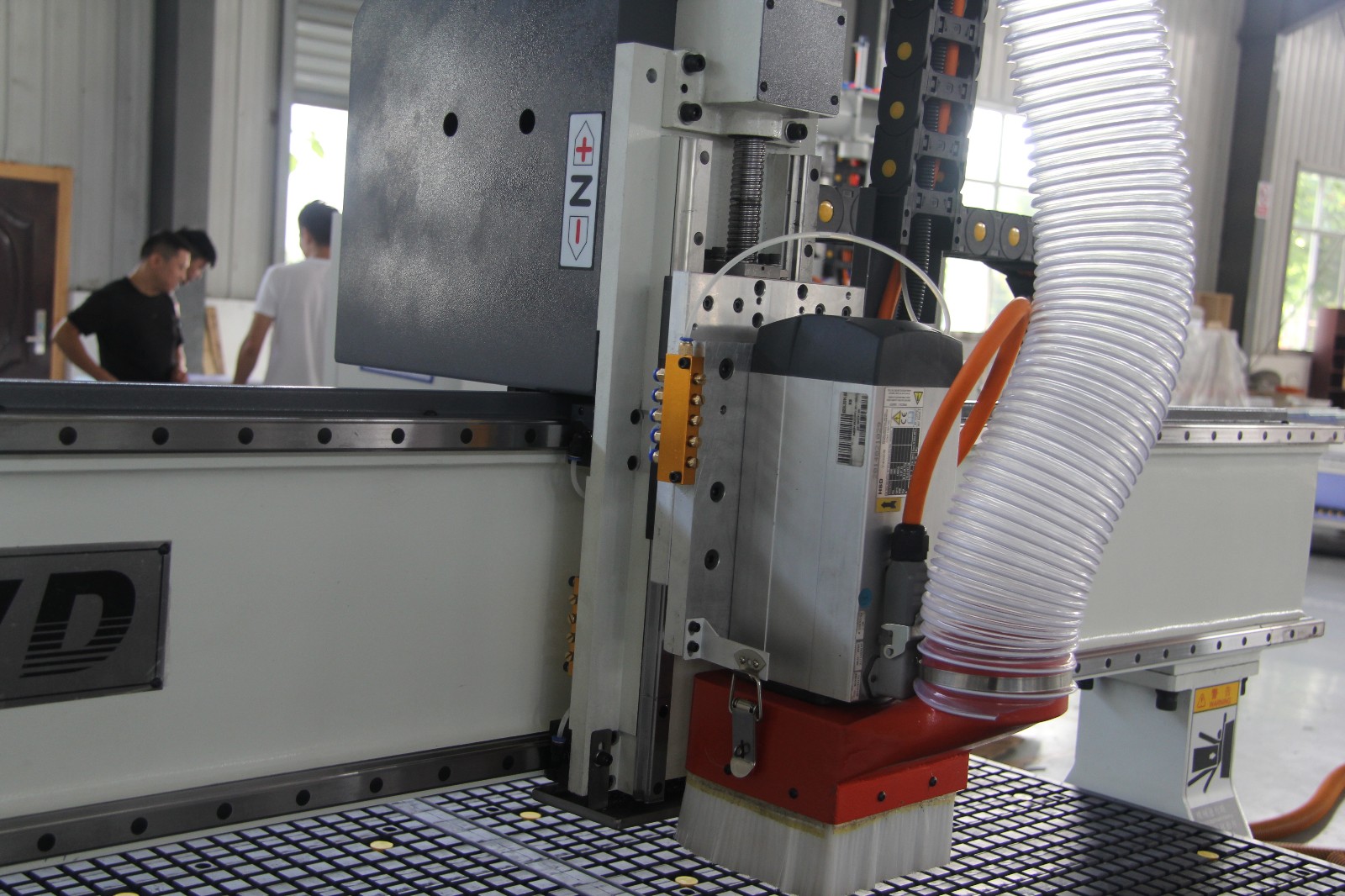

l 8 HP Italy HSD high frequency air cooling spindle
l Maintenance free micro-stepper motors and drivers
l Japan shimpo reducer coupled directly to stepper motors
l Pneumatic material alignment stops

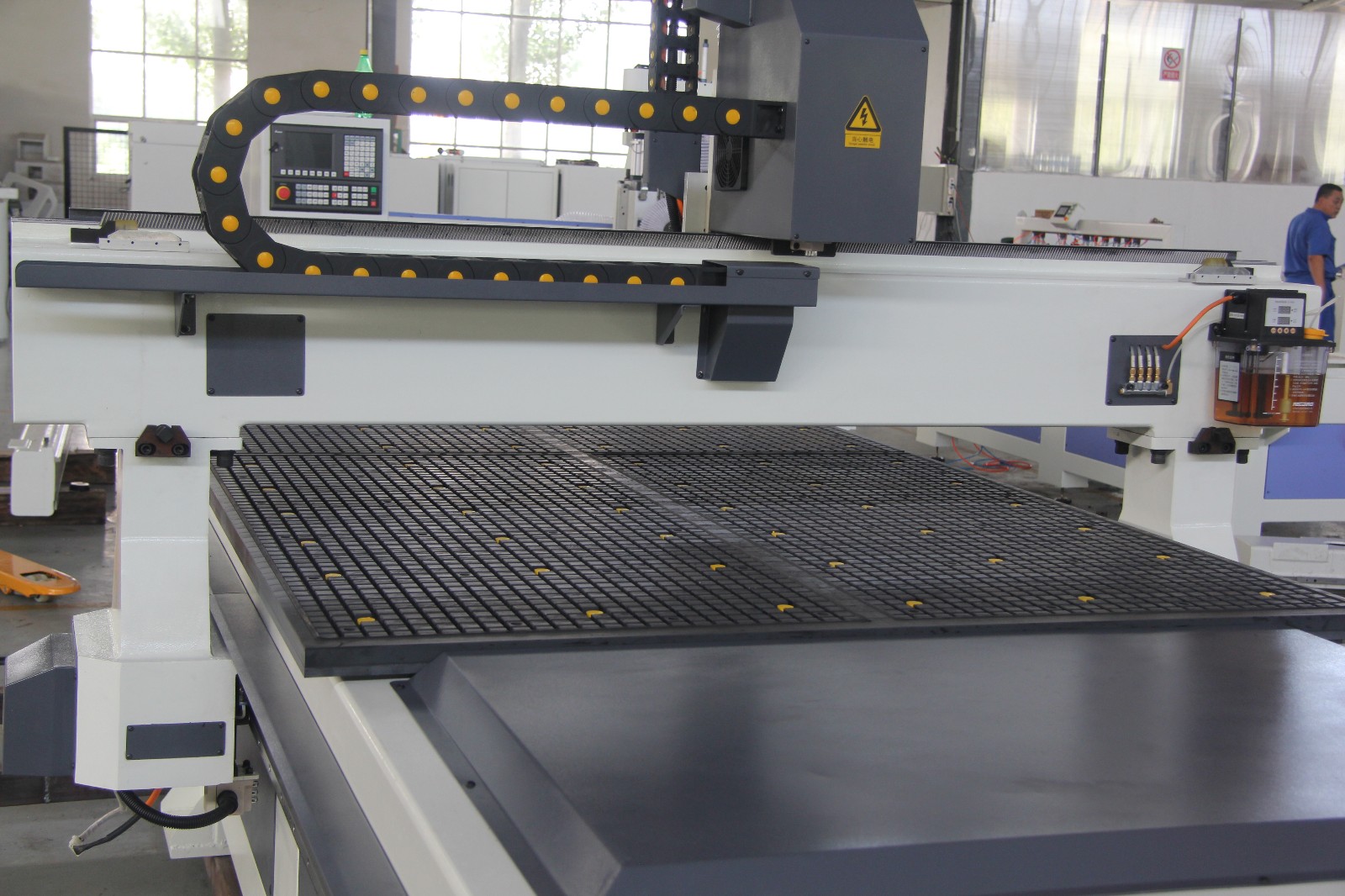

l Multi-zones nesting double-layer vacuum table
l
Open architecture works with all industry and standard CAD/CAM software
| Model | NM-481 / NM-510 / NM-2030 / NM-2040 |
| Working size | 1220*2440*250mm / 1500*3000*250mm/2000*3000*250Mmm / 2000*4000*250mm |
| Table size | 1220*2440mm / 1500*3000mm / 2000*3000mm / 2000*4000mm |
| Traveling size | 1320*2540*250mm |
| Spindle power | Italy HSD 3.0 kw / 4.5kw / 6.0kw / 7.0kw |
| Spindle speed | 0-18000mm/min |
| Driving system | Yako stepper driver and stepper motor |
| Reducer | Japan shimpo reducer |
| Operating system | Weihong NK105 / Weihong PM95A |
| Max rapid | 30m/min |
| Max working speed | 20m/min |

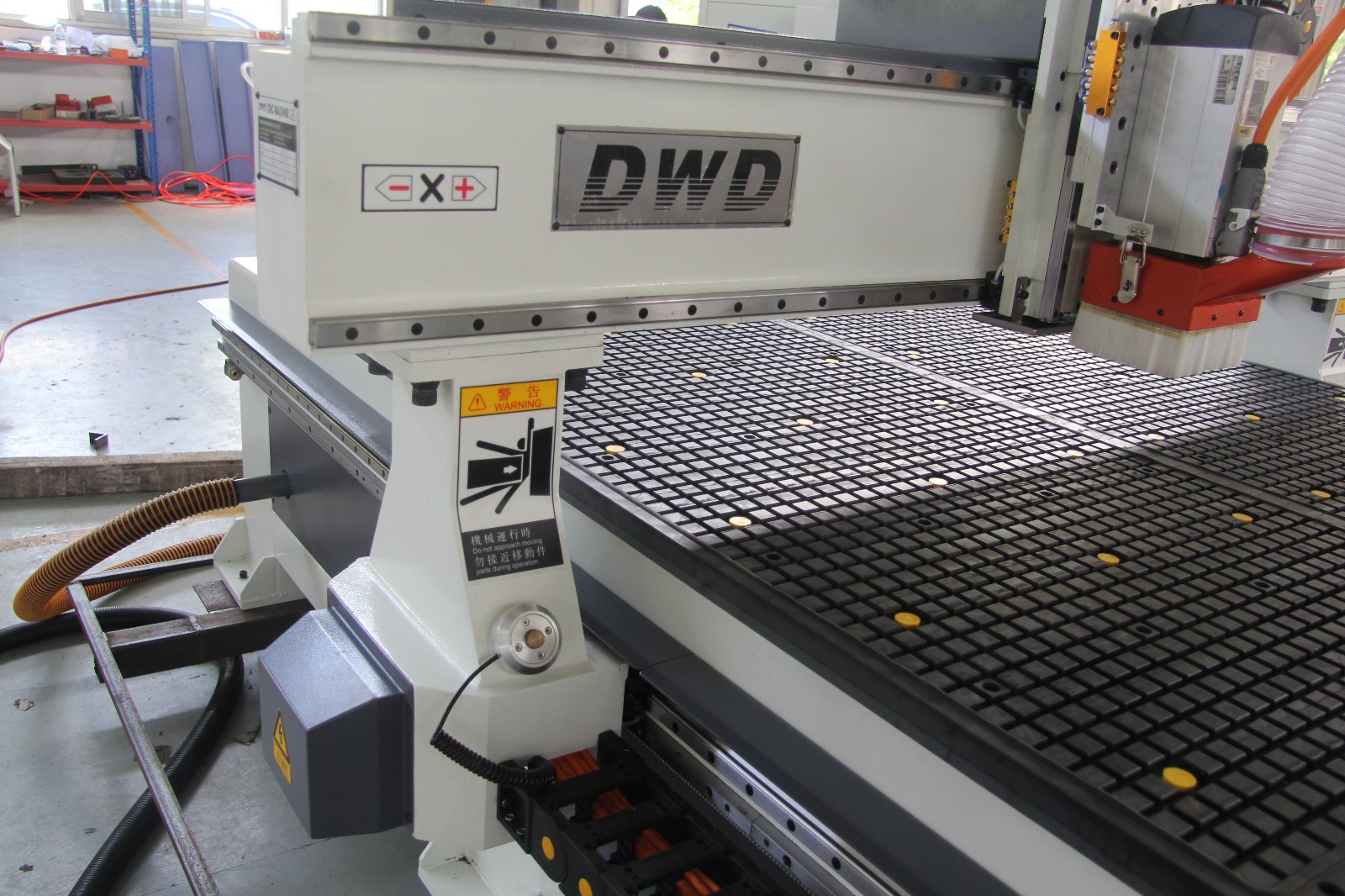

| Transmission | Rack pinion and PMI linear rail for x y,ball screw for z |
| Table structure | double layer nesting vacuum table |
| Calibration system | tool sensor |
| Working voltage | AC220V/380V,50/60HZ,3PH |
| Software | Alphacam / artcam / router8 / ucancam / Vectric |
